7000 Series

The 7000 series needlepoint air ion generators are commercial quality units intended for installation in air handling units (AHU), furnaces, or duct systems for commercial applications. The number of units and the quantity of the ionization outlets are dependent on the airflow in the system and the severity of the indoor air pollution problem. This unit is UL2998 validated for zero ozone emissions.

VOLTAGE
24V AC / 120V AC to 12V DC wall pack, 120V / 240V AC to 12V DC power supply, 241V / 277V AC to 12V DC power supply

ENERGY USE
1, 2, 3, 4 watts

CAPACITY
Up to 6,000 CFM

NO. OF IONIZATION OUTLETS
1, 2, 3 or 4

Category:

Description

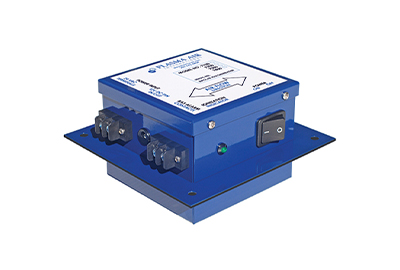

The Plasma Air 7000 Series Models 7100 / 7200 / 7300 / 7400 needlepoint ionizers are rated up to 6000 CFM and produce positive and negative ions neutralizing harmful pathogens, pollutants and odors. They are typically installed in supply ducts utilizing the pre-drilled flange and factory applied gaskets and can also be installed inside an HVAC unit utilizing a contractor supplied mounting bracket. The 7000 series is UL2998 validated for zero ozone emissions.

Airflow Capacity: . . . . . . . . . . . . . . Up to 1.400 CFM (7100)
. . . . . . . . . . . . . . . . . . . . . . . 1.401 to 2,800 CFM (7200)
. . . . . . . . . . . . . . . . . . . . . . . 2,801 to 4,200 CFM (7300)
. . . . . . . . . . . . . . . . . . . . . . . 4,201 to 6.000 CFM (7400)
Pressure Drop: . . . . . . . . . . . . . . . . . Less than 0.01 In. WG
Housing Material: . . . . . . . . .18 Gauge steel powder coated
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 lbs
Maximum Operating Temperature: . . . . . . . . 200º F (93ºC)

Ionization Output:

Mode of Operation: . . . . . . . . . . . . . . . . . . Needlepoint
Needle Configuration: . . . . . . . . . . . . . . . . . . .Recessed
No. of Ionization Modules: . . . . . . . . . . . . . . . . 1 (7100)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 (7200)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 (7300)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 (7400)

Electrical:

Voltage . . . . . . . . . . . . . . . . . . . . 24V AC input (7XX1)
. . . . . . . . . . . . . . . . . . . . . . .120V AC wall pack (7XX2)
. . . . . . . . . . . . . . .120V/240V AC power supply (7XX3)
. . . . . . . . . .277V AC to 12V DC power supply (7XX4)
Power Consumption: Less than 2VA per set of outputs
Current Draw: . . . . . . . . . . . . . . . . . 30 mA at 12V DC
Frequency: . . . . . . . . . . . . . . . . . . . . . . . . . . 50/60 hertz
Internal Fuse: . . . . . . . . . . . . . . . . . . . Auto reset 1 amp
BAS Monitoring: . . . . . . . . . . . . . Dry contact terminals
